Automatic Molybdenum Heating Pusher Carbonizing Furnace
Keywords:
CEMENTED CARBIDE PRODUCTION

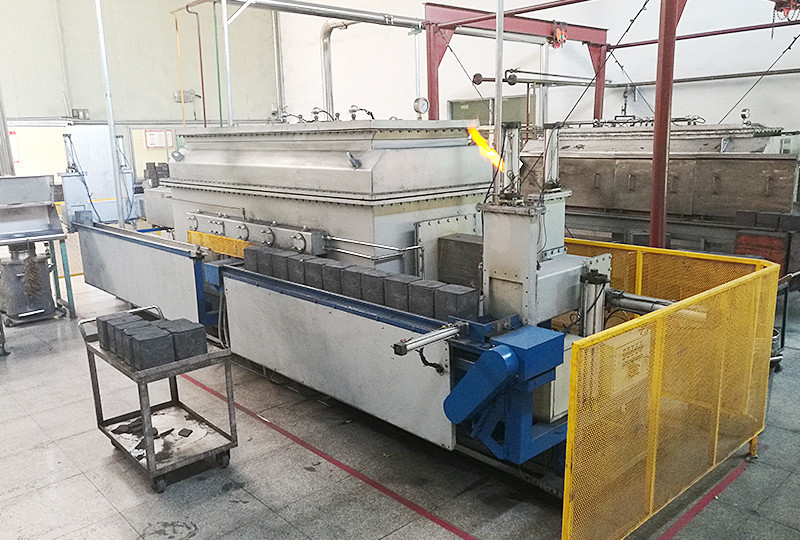

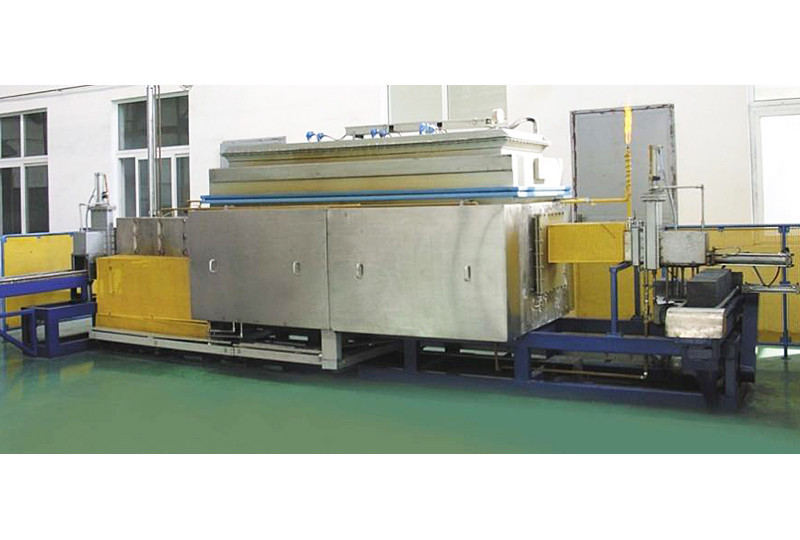

Automatic Molybdenum Heating Pusher Carbonizing Furnace
Applications
•The furnace is an ideal type to produce uniform and fine tungsten carbide powder, with capacity about 40kg/h. It can also be used to sinter cemented carbide in H2 atmosphere.
Features
•Overall Design

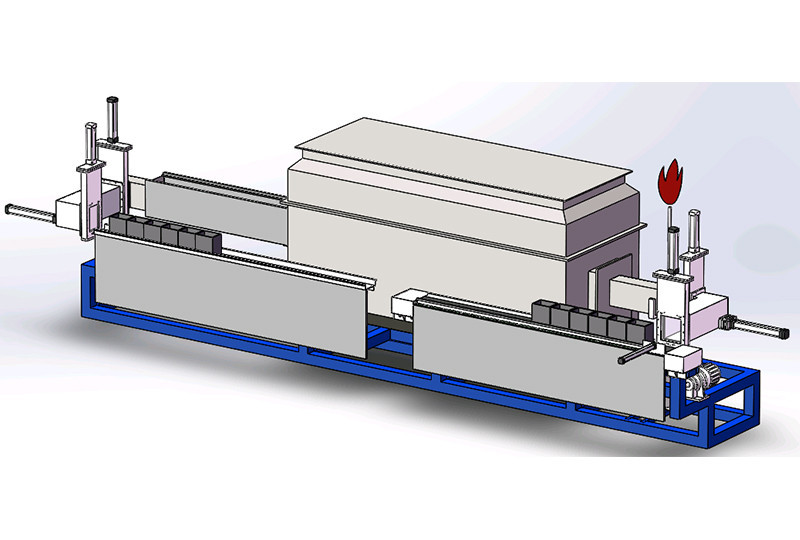

Boats are pushed ahead into the tunnel, DMF patented the double-door mechanism and boat transportation system. Equipped with emergency N2 in case of lack pressure.
•Automation
Equipped with PLC controlled automatic loading/unloading, weighing, densification, piling, covering of boats functions, the furnace continuously operates with high production efficiency.
•Easy Maintenance
The furnace chamber is made of corundum, and the Molybdenum filaments are hanged on two-side walls of the hearth outside the chamber, which makes it maintenance friendly.
Model Coding Rules
Specification
|
Model |
Working Temp. (℃) |
Heating Zone (mm） |
Power (KVA) |
Capacity for WC (kg/h) |
Heating Element |
Weight (Ton) |
L * W * H (m) |
|
AMCF-1600 |
1550 |
2600/4500 |
110/250 |
40~80 |
Mo wire |
10~20 |
8(16) * 2.5(3) * 2 |
