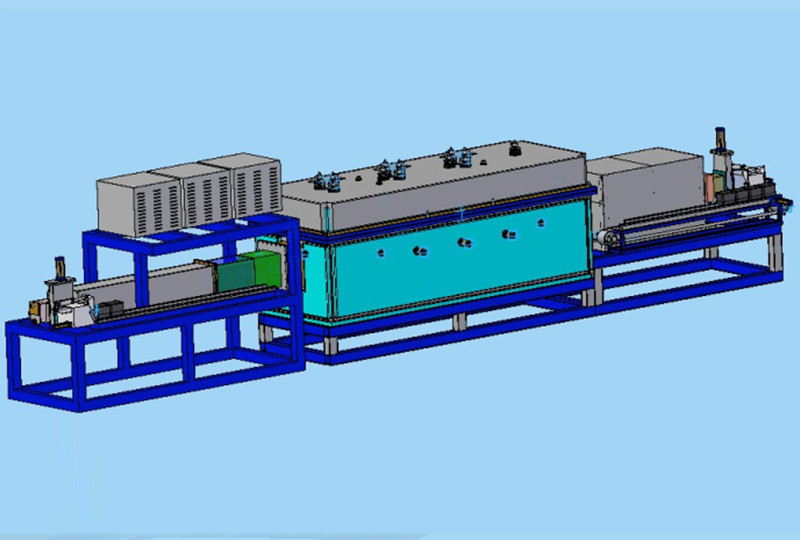

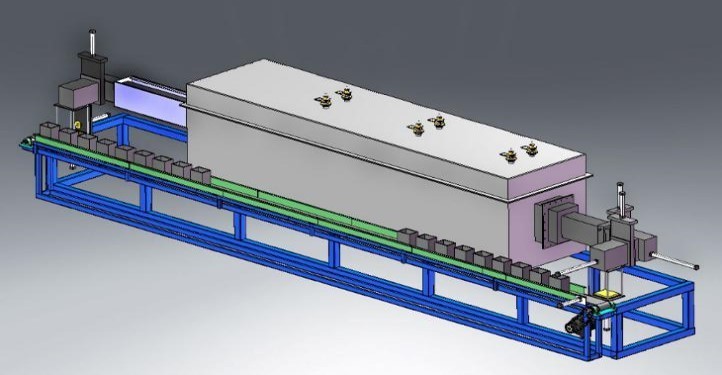

Automatic High -Temp. Carbonizing Furnace (Patented Product, pioneer in China)
Keywords:
CEMENTED CARBIDE PRODUCTION
Automatic High -Temp. Carbonizing Furnace (Patented Product, pioneer in China)
Applications
•This furnace is DMF’s patented product.
•This furnace is best used for producing medium particle WC particle.
Features
•It looks similar with the Molybdenum Heating Furnace, with same automatic loading/unloading mechanism, and same size of boats etc.
•This furnace has the advantage of producing high quality product, with higher working temperature than Mo. Heating furnace.
•In order to reach temperature of 1600℃ or above, the furnace chamber, the heater and the heat insulation are all made of Carbon.
Model Coding Rules
Specification
|
Model |
Working Temp (℃) |
Heating Zone |
Power |
Heating Element |
Capacity for WC |
Weight |
L * W * H |
|
AHCF-2200 |
2000~2200 |
2000~3000mm |
210~300KW |
Graphite |
40~70 kg/h |
~8Ton |
9 *2.5 * 2 m |
